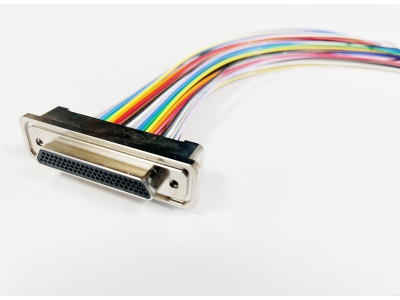

韓國Micro-D微矩形電連接器(J30J系列)
用于高精度慣性測量單元,陀螺儀,測斜儀等
符合GJB2446《外殼定位超小型矩形電連接器總規范》(相當于美軍標MIL-C-83513),可與美國MDM系列產品和國內同類產品互換,在J30系列產品的基礎上增 加了鋁合金外殼與各種鋁合金尾夾;采用絞線式插針 (俗稱麻花針),單個接觸件接觸點達七個,提高了產品的接觸可靠性;采用1.27mm網格,接觸件密度大、體積小、重量輕;現有9、15、21、25、31、37、51、69芯共8種型譜可供選用;本產品的鎖緊組件按與產品組裝在一起提供,本系列產品的執行標準如下:Q/ZHDZ GC-18《J30J系列微矩形電連接器詳細規范》。
主要技術特征
環境溫度:-55~+125℃
額定電流:3A
絕緣電阻:≥5000 MΩ
介質耐壓:600 V
機械壽命:500次
Sungjin's Micro Miniature connectors
apply pins for minimum contact
resistance and excellent performance.
Micro Miniature connectors provide
great performance for the smallest
resistance of the # 24 pin at .050 inch
contact spacing which has strong
performance against shock and
vibration.
Sungjin's Micro Miniature connectors
are designed to meet the specifications
of MIL-DTL-83513 and provide the
minimum physical space and maximum
reliability for strong shock and vibration.
